26700-102-00

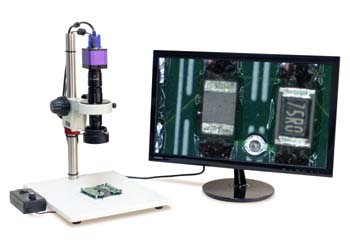

Video Inspection System

Objects stay focused as magnification zooms to 190x. This micro system with a broad magnification range is ideal for small parts inspection. The zoom lens with detents is parfocal, so viewed objects stay in focus when switching from low to high magnification. No PC is needed for image processing. The package includes a 1x coupler and 1x objective lens mounted on a post stand, as well as a rack and pinion focus mount with coarse and fine focus, CMOS 720p color camera with VGA output, and a LED ring light with intensity control. The screen is a 20" LCD color monitor. Also included is a 0.5x objective lens to extended the working distance and field of view. With the 1x objective lens, this produces a magnification range of 28.5x to 190x at a working distance of 82mm.



Features
  • Produces crisp clear images
  • White LED illumination with intensity control
  • Color camera with movable and switchable crosshairs
  • On screen menu for controlling color, contrast, white balance etc.
  • Compact system, helps save bench space
