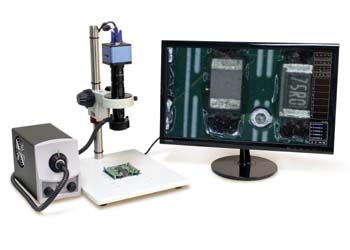

26700-102-15Video Inspection SystemThis micro system with a broad magnification range and measurement software is ideal for precise small parts inspection and high-accuracy documentation. The zoom lens with detents is parfocal, so viewed objects stay in focus when switching from low to high magnification. No PC is needed for image processing. The package includes a 1x coupler and 1x objective lens mounted on a post stand, as well as a rack and pinion focus mount with coarse and fine focus, CMOS 1080p color camera with HDMI output and a built-in USB port for saving images. This complete system has a fiber optic illuminator with ring light and a 22" HD LCD color monitor. Also included is a 0.5x objective lens to extend the working distance and field of view. With the 1x objective lens, this produces a magnification range of 19.5x to 263x at a working distance of 82mm. The built-in program can measure lines/distance, circles, arcs, squares, polygons, perimeters, angles and center-to-center distance with a mouse click. Measurement data together with the images can be saved to the built in USB port. Eliminates use of PC and expensive measurement software. Features
| |||||||
