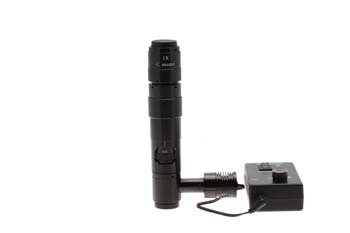

26700-151-CX

Micro Video Lens

Ideal for inspecting highly reflective surfaces. Aven Micro Lens System with inline Coaxial Illumination is ideal for applications involving highly reflective surfaces, such as wafers, polished parts and fluids. This lens system will provide even illumination in high magnification applications. This lens system comes with detents which allows you to calibrate the lens for measurement repeatability. Comes standard with 1x C-mount coupler and 1x objective lens and LED illuminator with intensity control. Total magnification os 0.6x to 4.0x, Field of view is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. Working distance is 82mm. Additional couplers and objective lenses are available to help you configure a lens system to meet your application. See optical specification chart for more details.

• Inline Coaxial Illumination for highly reflective surfaces
• Infinity Optical Design for large depth of field and zoom ratio
• Parfocal throughout zoom range
• Compact design
• High contrast images and vivid colors
