Currently 0 in stock.
Discontinued

26800B-352

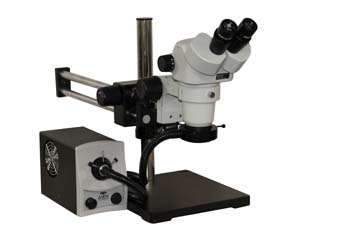

Stereo Zoom Microscope

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZH-135extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a constant�working distance of 3.3" (84mm). The versatility of the SPZH-135 can be realized by adding an optional 0.5x auxiliary lens for an extended working distance of 5.31" (135mm) while still providing high magnification in the range of 10.5x to 67.5x. Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope further � 28X to 180X. Having eyepieces set at a 45 degree angle, the adjustable interpupillary distance between eyepieces of 1.96" (50mm) to 2.91" (74mm) means they can be set to the comfort level of any user.Mounted on a double arm boom stand with E-ARM focus mount and having illumination provided by a High Output LED fiber optic illuminator and ring light makes this system ideal for virtually any investigative or inspection application.

Features

Total Magnification of 21X to 135X at 3.3" (84mm) working distance, Max 180X with 20X eyepieces
Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
Diopter adjustment on both eyepiece tubes
Adjustable Interpupillary Distance of 1.96" (50mm) to 2.91" (74MM) accommodates any operator
Mounted in an E-ARM focus mount attached to a Double Arm boom stand w/ball bearing glides
High Output LED fiber optic illuminator and ring light provide clear illumination for imaging
Optional equipment 0.5X Auxiliary lens and 20X eyepieces available
