26800B-354
Currently 0 in stock.
Discontinued

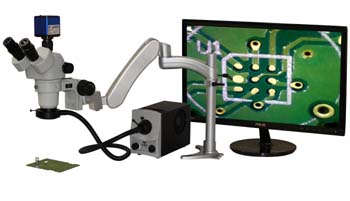

26800B-354

Stereo Zoom Trinocular Microscope

The ideal scope for a wide range of investigative/inspection applications, Aven's dynamic new microscope SPZHT-135 Trinocular microscope extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification while providing a constant working distance of 3.3" (84mm). Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope even further – 28X to 180X. Having eyepieces set at a 45 degree angle, the adjustable interpupillary distance between eyepieces of 1.96" (50mm) to 2.91" (74mm) means they can be set to the comfort level of any user, including operators who require eyeglasses. Click-stop-zoom adjustments assure accurate, repeatable measurements. A 1080P HD camera delivers unsurpassed imagery to any HDMI monitor or camera SD capture card, and the high output Fiber Optic Illuminator provides clean, shadow free illumination. The system is mounted on our light weight articulating arm that extends both area of view and working distance for improved productivity. This system is ideal for inspecting small parts at high magnifications.



Features
  • Total Magnification of 21X to 135X at 3.3" (84mm) working distance, Max 180X with 20X eyepieces
  • Click stop zoom adjustments for accurate, repeatable measurement
  • 1080P HD camera for unsurpassed imagery
  • One touch fine focus trinocular camera port adjustment for quick, easy camera focus and parfocaling the scope
  • LW articulation arm to extend area of view and working distance
  • Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
  • Diopter adjustment on both eyepiece tubes
  • Adjustable Interpupillary Distance of 1.96" (50mm) to 2.91" (74MM) accommodates any operator
  • High output Fiber Optic illumination for shadow free observation and capture
  • Multi coated optical components, free from chromatic and spherical aberration
  • Coarse and fine focusing, ideal for fine detail work
  • 22" HDMI monitor for increased, improved throughput
