485-1-V12

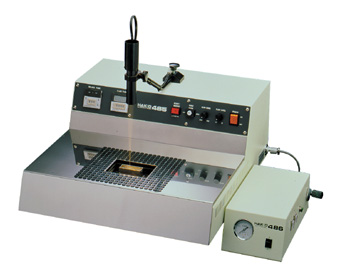

485 Soldering System w/o 486 Air Control Unit

The HAKKO 485 soldering system is a compact, high-performance soldering system developed exclusively for soldering and desoldering components and connectors mounted on PC boards.

• compatible with LEAD-FREE solder

• solder flow is time-controlled and temperature-controlled

• soldering and desoldering cycles are automatic and precise

• a built in locator light pinpoints the exact position for placing components

• solder remaining in through-holes is completely removed by using the Hakko 486 Air Blower (included with 485-V12)

• a large selection of nozzle sizes available

NOTE: Due to the increased use of LEAD-FREE and other solder compositions, the 485 is shipped with an empty solder pot. Previously, customers would have to empty and clean the solder pot when using any solder other than the supplied Sn63 alloy. Shipping the 485 without solder will save time and effort for the end-user.

Part Number: 485-V12, WITH 486 Air Blower

Part Number: 485-1-V12, withOUT 486 Air Blower
