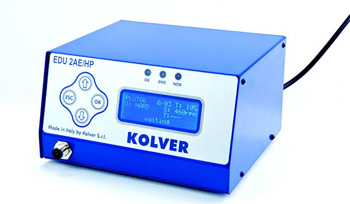

EDU2AE-HPro

Control Unit

The High Proformace version of the EDU2AE offers twelve (12) additional paramaters for addtional process control and information.

The HP version displayes a torque value that is calibrated back to a offline Transducer. Limits can be set around the displayed torque value to indicate pass/fail situations. The unit includes the ability to run at the full torque of the tool for a controlled amount of time to overcome high prevailing torque in thread cutting applications. It is password protected which the EDU2AE is not. And, the EDU2AE/HP can screw and batch count.

The EDU2AE/HPro adds to the EDU2AE/HP with:

- 10 Pin I/O connector for lever signal, screw ok,, error message, stop motor, reverse & start signals
- RS232 Serial port
- 8 Pin I/O connector for program end, motor on, external reset, external ok, external escape, missing piece (photo eye)

EDU2AE user definable parameters:

1. Driver Model
2. Torque level adjustment: 2.6 to 442 in-lbs (tool dependent)
3. Joint type (HARD or SOFT) selects RPM profile
4. Break Time: down shift speed from pre-torque to final toque when in the Hard Joint RPM profile
5. Ramp Time: select from 0.2 to 3.0 Seconds
6. Speed: tool dependent
7. Minimum Time: select from 0.1s to MAX - 0.1s. Torque reached before this time will not activate torque output signal.
8. Maximum Time: select from MIN + 0.1 s to 20 sec. If torque is not reached before the MAX time the screwdriver will stop and an error message will be displayed.
9. Auto Reverse
10. Reverse Speed
11. Reverse Torque:
12. Language: English, Italian, German, Spanish.

Addtional EDU2AE/HP user definable parameters:

1. Thread Cutting, Programmable in 1/2 second.
2. Rotations: Left or Right
3. Change Password
4. Password: On or Off
5. Calibration
6. Compensation
7. Unit: In/lbs or Nm
8. Torque: Min Setting
9. Torque: MaxSetting
10. Number of Screws
11. OK/ESC
12. Number of Cycles

Items that ship with this unit:

• 110V AC power cord
