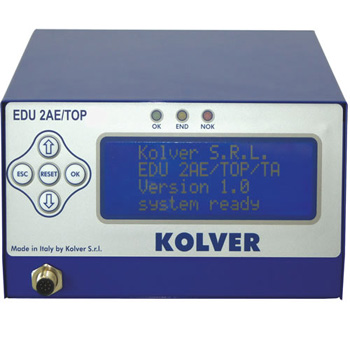

EDU2AE-TOP



Torque Controller

This system allows eight (8) user defined parameter sets (programs) to be set up to control the torque, RPM profile, direction and time for any PLUTO screwdriver: The system also displays a torque value after every tightening that is calibrated back to an external transducer at setup. The system is controlled through a LCD display on the front of the unit. Changes to the parameters are performed by scrolling through the settings using four buttons, no PC is required.

The electronic control circuit cuts the power supply to the motor calculating the correct torque in response to 3 parameters: voltage, frequency and current, according to the user selectable parameters below.

Main Features of the EDU2AE/TOP:
  • One controller for a torque range of 2.6 to 442 in-lbs, depending on driver used.
  • Torque value display after each tightening.
  • Easy to program user interface screens.
  • Eight (8) independent P-sets or Program.
  • Password protected.
  • Statistics menu with summary of number of screws, and the number of assemblies completed.
  • 15 input and 11 output connectors: all functions can also be controlled remotely.
  • USB, Serial port, or optional Eithernet box for retrieval of tightening data.
  • Optional Switch box, Socket/Bit tray or barcode scanner for program selections.
User definable parameters for each of eight (8) programs:
  1. Driver Model
  2. Torque level adjustment: 2.6 to 442 in-lbs (tool dependent)
  3. Joint type (HARD or SOFT) selects RPM profile
  4. Break Time: down shift speed from pre-torque to final toque when in the Hard Joint RPM profile
  5. Ramp Time: select from 0.2 to 3.0 Seconds
  6. Speed: tool dependent
  7. Minimum Time: select from 0.1s to MAX - 0.1s. Torque reached before this time will not activate torque output signal.
  8. Maximum Time: select from MIN + 0.1 s to 20 sec. If torque is not reach before the MAX time the screwdriver will stop and an error message will be displayed.
  9. Reverse:
  10. Reverse Time:
  11. Reverse Torque:
  12. Language: English, Italian, German, Spanish (French and Portuguese on request)
  13. Thread cutting programmable in 1/2 second increments.
  14. Rotation: Left or Right
  15. Change password.
  16. Password On or Off.
  17. Calibration
  18. Compensation
  19. Unit: In/lbs or Nm.
  20. Torque: Min Setting
  21. Torque: Max Setting
  22. Number of Screws
  23. OK/ESC
  24. Number or Cycles

Items that ship with this unit:

  • 110V AC power cord

Details & Specifications


Torque Range: 2.6 - 442 in-lbs (Tool Dependent)
RPM Range: 40 - 1200 (Tool Dependent)
Screw Size: M2 to M8
Voltage: 110V
Dimensions: 196 x 170 x h110 mm
Weight: 9 lbs
Repeatability: Joint/profile dependent
Accuracy: Joint/profile dependent
Time Control: Standard
RPM Control: Standard
Screw Counting: Standard
Profile Sequencing: Standard
Parameter Sets: Eight (8)
Torque Settings: Eight (8)
Torque Control: Standard
