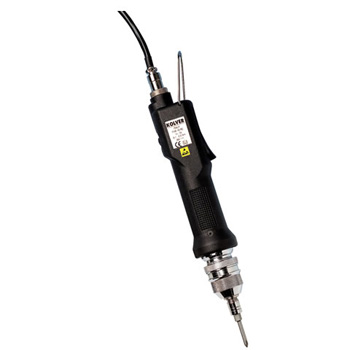

FAB18RE-FR

Torque Driver

The FAB18RE/FR is a step up in torque from the FAB12 series, with a larger motor and gear-set. This tool is supplied in an ergonomic ESD safe in-line body style.

The tools offer ease of use, have high accuracy and durability. They are lightweight (about 1 lb), compact, powerful and come standard with ESD-safe housing certified to SP method 2472 (Ericsson approved). The adjustable RPMs and slow-start options make it a versatile tool ideal for multiple applications.

The torque is set externally: an adjusting nut controls output torque by changing the clutch spring compression. A reference scale will indicate the torque setting. The low voltage 30 VDC rare earth motor combines high performance and long life. Replacing the carbon brushes once a year is all you need for maintenance. The motor works in combination with a control unit. The electronic control circuit cuts the power supply to the motor in response to the clutch action, as soon as the pre-set torque has been reached.

A Controller is required for this tool to operate (purchased separately). Choose a Controller from the list below. The EDU1FR is our most popular controller, because of the RMP control it provides. The EDU1FR/SG offers the same functionality with the addition of an input for remote start and outputs for lever start (motor on) and clutch fired (motor stop). The EDU1CL/FR is the same shape and size but offers no RPM control (this is our lowest cost model). The EDU1FR/PLC offers screw counting and has IO available to control secondary operations.

Items that ship with this unit:

• Screwdriver with ESD-safe body
• 8 ft controller connection cable
• Suspension bail

NOTES: The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.

Comes With Free EDU1FR Controller
