FG101-10

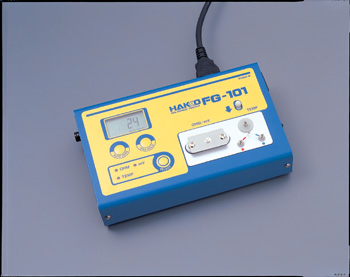

FG-101 Soldering Iron Tester (°Fahrenheit)
The Hakko FG-101 Soldering Tester measures tip temperature, leak voltage, and tip-to-ground resistance. This tester will provide you with quick, accurate soldering measurements. Note: Calibration Certificate comes with equipment.
The HAKKO FG-101 Soldering Tester measures tip temperature, leak voltage, and tip-to-ground resistance. Leak voltage and tip-to-ground resistance can be easily measured due to automatic self-correction of the zero point.
• Resistant to drift and ambient temperature variations.
• Highly reliable and accurate measurements.
• MAX HOLD function displays maximum value when MAX HOLD button is pressed.
• Suitable for Lead-Free solder applications.
•
Measures in degrees Fahrenheit.
• Celsius unit availabe by special order
NOTE: Leak voltage is that potential resulting from the small current ‘leaking’ from
the tip of a soldering iron, even though the tip may be grounded. This current
can damage sensitive components. The HAKKO FG-101 provides a quick and accurate
means of measuring this leak voltage.
Note: Calibration Certificate comes with equipment.
Part Number
FG101-10
Temperature
Resolution
1°F
Measurement range
32°F - 1300°F
Precision
±6°F (572°F - 932°F) ±10° outside of above range
Sensor
K(CA) thermocouple
Voltage
Resolution
0.1mV
Measurement range
0-40mV (AC)
Precision
± (5% + 1 digit)
Resistance
Resolution
0.1 ohms
Measurement range
0-40 ohms
Precision
± (5% + 1 digit)
Display
Liquid Crystal Display
3.5 digits
Burnout
-/
MAX HOLD
Refer to manual
Monitor Output
Temperature
1mV/°C, °F
Voltage
10mV/mV
Resistance
10mV/ohm
Burn out
-7V (MAX.)
Power Consumption
120V/2W
Dimensions
200(W) x 50(H) x 120(D) mm (7.9[W] x 2.0[H] x 4.7[D] in.)
