FM2026-01

FM2026-01 Iron Connector Assembly

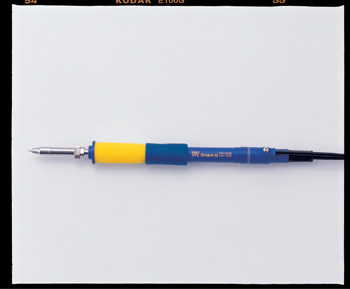

FM-2026 N2 Soldering Iron (can be used with the Hakko FP-102, FM-202, FX-951, FM-203 and FM-206 stations)
• supplies hot nitrogen (N2) gas to the soldering area
• the nitrogen gas is preheated as it passes along the ceramic heater in the FM-2026 handpiece
• soldering efficiency can be improved as the hot nitrogen creates a preheating effect while reducing the amount of oxygen in the solder connection area (less oxidation)


• Part Number: FM2026-01

Nozzle Assembly (click on image for enlarged view)
• delivers uniform nitrogen gas to the soldering area
• efficient operation prevents the oxidation of solder

The Hakko N2 soldering system's compact design saves valuable bench space. Use it for soldering multilayer PWBs and high density PWBs with heat sensitive components.

Call your local Hakko sales professional for a no obligation demonstration today.

Note: The 6 mm hose (black tubing) from the nitrogen generator to the controller are not included because length requirements vary greatly from customer to customer. The 6 mm hose (black tubing) can be purchased at your local hardware store.

Part Number: FX780-01 Generator  (see Specifications for details)
Part Number: FX791-01 Controller  (see Specifications for details)
Part Number: FM2026-01 N2 Soldering Iron (see Specs for details)

Part Number: FM2026-KIT
Note: FM-2026-KIT includes FM2026-01 (iron) and FX791-01 (Controller) ONLY
