FM2031-01

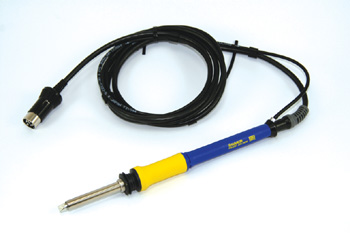

FM-2031 Nitrogen Heavy Duty Soldering Iron Handpiece Only

NITROGEN COMPATIBLE HEAVY DUTY SOLDERING IRON

The Hakko FM-2031 Nitrogen Compabitle Soldering Iron provides a higher mass tip with double the power of conventional T17 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

• uses T22 tips (not included)
• compatible with the Hakko FM-203 soldering station and FM-206 rework system

IMPORTANT. PLEASE READ: The FM-2031 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Note: This is the Handpiece ONLY.
For the complete kit, including holder, etc., see PN: FM2031-02

Note: Nozzle Assembly Required when using nitrogen
Nozzle assemblies are required in order to properly envelop the tip when using nitrogen. Nozzle assemblies are made to fit specific shape tips. Please choose the approprate nozzle assembly for your tip selection based on the chart below.
