FM2032-51

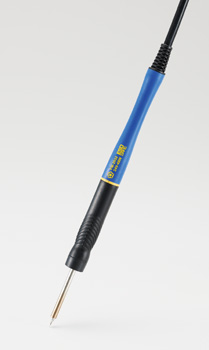

FM-2032 Micro Soldering Iron Handpiece Only

Add precision micro soldering capabilities to your FX-951, FM-203, or FM-206 soldering and rework system. This slim, lightweight handpiece has a tip-to-grip distance optimized for operator dexterity while working under microscopes.

• Thin, burn resistant iron cord

• Quick-change T30 Series tips

• Cool running grip even when operating at 450°C for extended periods

• ESD Safe

For complete KIT (with iron holder, etc.):

FM2032-52

MICRO SOLDERING IRON (Handpiece Only)

Model FM-2032
Part Number FM2032-51
Power Consumption 48W / 24V
Temperature Range 400° - 840°F
(200° - 450C°)
Tip-to-Ground Resistance < 2 ohms
Tip-to-Ground Potential < 2mV
Temperature Accuracy¹ Meets or Exceeds
IPC J-STD-001
Temperature Stability Meets or Exceeds
IPC J-STD-001
ESD Safe Yes
Safety Approval
Reach 3.9 ft. (1.2m)
Handpiece Length
6.7 in. (170mm) w/T30-D1 tip
Handpiece Weight 0.49oz (14g) w/T30-D1 tip
Tips T30 Series (not included)
¹ - With Offset

NOTE: The FM-2032 can be used with the Hakko FX-951, FM-203, and FM-206
