FM204-01

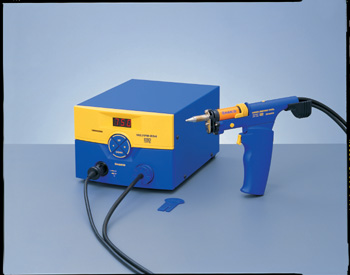

FM-204 "Self-Contained" Desoldering & Soldering Station with FM-2024 Desoldering Tool

The Hakko FM-204 is a "self-contained" desoldering station with all the "soldering" functionality of the FM-203 in a single-port station.

• Built in vacuum pump

• Temperature range 200 - 450°C (400 - 840°F)

• Temperature accuracy ±15°C

• Quick-change composite nozzles (N3 series)

• Gun or Pencil-style desoldering handpiece

• Sleep mode functionality

• Nozzles are NOT included

Note: The FM-204 and FM204-CP (Conversion Port) are "SINGLE PORT" stations, meaning, ONLY ONE HANDPIECE can be used at a time. (You cannot use the soldering handpiece and desoldering handpiece at the same time.)

Part Number: FM204-01
Note: The FM-204 ships with one (1) FM2024-02 desoldering tool.

Part Number: FM204-CP (Conversion Port)
Note: The FM-204 ships with one (1) FM2024-02 desoldering tool and one (1) FM2027-03 soldering handpiece.

See Specifications for more details.

FM-204 Desoldering Station Model Name FM-204 Part Number FM204-01 Power Consumption 120W Temperature Range 200° - 450°C (400° - 840°F) Temperature Stability ±5°C (±9°F) Temperature Accuracy ±15°C (±27°F) Station Output Voltage 24V Outer Dimensions 160(W) x 120(H) x 225(D) mm 6.3 (W) x 4.7 (H) x 8.9 (D) in. Weight (w/o Cord) 3.7 kg (8.1 lb.) Vacuum Generator Vacuum pump, double cylinder Vacuum Pressure (max.) 80 kpa (600mm Hg) (24 in. Hg) Suction Flow 15 liters/min. FM-2024 Desoldering Tool Power Consumption 70W (24V) Temperature Range 350° - 450°C (660° - 840°F) Tip-to-Ground Resistance < 2 ohms Tip-to-Ground Potential < 2mV Cord length 1.2m (47 in.) Total Length (w/o cord) 180 mm (7.0) Weight (w/o cord) 65g (2.3 oz) Cord Length 1.2m (4 ft.) FM-2027 Soldering Iron(not included with FM204-01) Power Consumption 70W (24V) Temperature Range 200° - 450°C (400° - 840°F) Tip-to-Ground Resistance < 2 ohms Tip-to-Ground Potential < 2mV Cord length 1.2m (47 in.) Total Length (w/o cord) with 2.4D tip 180 mm (7.4 in.) Weight (w/o cord) with 2.4D tip 30g (1.0 oz.) Contents Part Number Description   N/A FM-204 Desoldering Station   FM2024-02 Desoldering handpiece   A1511 Filter pipe assembly (10 pc pack) 1 pack only B2972 Control card   B2419 Power cord   B3253 Connecting cable   FH200-05 Iron Holder, Sleep with 599B B2872 Handle for gun configuration B2873 Cleaning drill for heating element B2876 Nozzle remover   B2300 Heat resistant pad   A1514 Ceramic paper filter (10 pc pack) 1 pack only N/A Instruction manual     APPROVED   NOTE: The FM204-CP includes all the above as well as one each FM2027-03 soldering iron connector with sleep holder and cable. Tips/Nozzles NOT included.
