FM204-CP

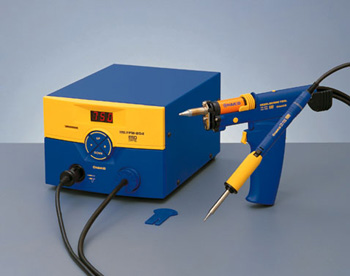

FM-204 "Self-Contained" Desolder & Soldering Station with FM-2024 Desolder Tool & FM-2027 Soldering Iron
Hakko’s FM-204 is a self-contained desoldering and soldering station with a built-in vacuum pump. This versatile station fits the N3 series quick-change composite nozzles.
DESOLDERING & SOLDERING STATION
The
Hakko FM-204 is a "self-contained" desoldering station with all the "soldering" functionality of the FM-203 in a single-port station.
• Built in vacuum pump
• Temperature range 200 - 450°C (400 - 840°F)
• Temperature accuracy ±15°C
• Quick-change composite nozzles (N3 series)
• Gun or Pencil-style desoldering handpiece
• Sleep mode functionality
• Nozzles are NOT included
Note: The FM-204 and FM204-CP (Conversion Port) are "SINGLE PORT" stations, meaning, ONLY ONE HANDPIECE can be used at a time. (You cannot use the soldering handpiece and desoldering handpiece at the same time.)
Part Number: FM204-01
Note: The FM-204 ships with one (1) FM2024-02 desoldering tool.
Part Number: FM204-CP (Conversion Port)
Note: The FM-204 ships with one (1) FM2024-02 desoldering tool and one (1) FM2027-03 soldering handpiece.
See Specifications for more details.
| | FM-204 Desoldering Station Model Name | FM-204 | Part Number | FM204-CP | Power Consumption | 120W | Temperature Range | 200° - 450°C (400° - 840°F) | Temperature Stability | ±5°C (±9°F) | Temperature Accuracy | ±15°C (±27°F) |
Output Voltage | 24V | Outer Dimensions | 160(W) x 120(H) x 225(D) mm
6.3 (W) x 4.7 (H) x 8.9 (D) in. | Weight (w/o Cord) | 3.7 kg (8.1 lb.) | Vacuum Generator | Vacuum pump, double cylinder | Vacuum Pressure (max.) | 80 kpa (600mm Hg) (24 in. Hg) | Suction Flow | 15 liters/min. |
Power Consumption | 70W (24V) | Temperature Range | 350° - 450°C (660° - 840°F) | Tip-to-Ground Resistance | < 2 ohms | Tip-to-Ground Potential | < 2mV | Cord length | 1.2m (47 in.) | Total Length (w/o cord) | 180 mm (7.0) | Weight (w/o cord) | 65g (2.3 oz) | Cord Length | 1.2m (4 ft.) |
FM-2027 Soldering Iron(not included with FM204-01) Power Consumption | 70W (24V) | Temperature Range | 200° - 450°C (400° - 840°F) | Tip-to-Ground Resistance | < 2 ohms | Tip-to-Ground Potential | < 2mV | Cord length | 1.2m (47 in.) | Total Length (w/o cord) with 2.4D tip | 180 mm (7.4 in.) | Weight (w/o cord) with 2.4D tip | 30g (1.0 oz.) |
Contents Part Number | Description | | N/A | FM-204 Desoldering Station | | FM2024-02 | Desoldering handpiece | | | FM2027-03 | Soldering Iron | | A1511 | Filter pipe assembly
(10 pc pack) | 1 pack only | B2972 | Control card | | B2419 | Power cord | | B3253 | Connecting cable | | FH200-05 | Iron Holder, Sleep | with 599B | B2872 | Handle | for gun configuration | B2873 | Cleaning drill | for heating element | B2876 | Nozzle remover | | B2300 | Heat resistant pad | | A1514 | Ceramic paper filter
(10 pc pack) | 1 pack only | N/A | Instruction manual | |
NOTE: The FM204-CP includes all the above as well as one each FM2027-03 soldering iron connector with sleep holder and cable. Tips/Nozzles NOT included. |
|
