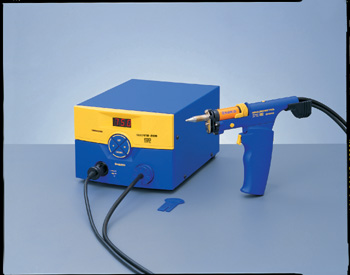

FM-205 "Shop Air" Desoldering & Soldering Station
The Hakko FM-205 is a “shop-air” desoldering and soldering station. The shop-air feature provides for higher vacuum pressure and increased suction flow in comparison to the FM-204.
The FM-205 ships with one (1) FM2024-02 desoldering tool
• Digital Temperature Control
• Temperature range 200 - 450°C (400 - 840°F)
• Temperature accuracy ±15°C
• Uses composite nozzles for improved thermal performance.
• Quick-change composite nozzles (N3 series)
• Uses low cost disposable filter cartridges
• Can be used as a soldering station with a Hakko FM2027 connector
• Gun or Pencil-style desoldering handpiece
• Less prone to clogging as compared to older desoldering stations when used on lead free applications
• Includes low temperature alarm, sleep mode functionality & auto power off
Note: This station requires shop air.
| |
FM-205 Desoldering Station
|
Model Name
|
FM-205
|
|
Part Number
|
FM205-01
|
|
Power Consumption
|
80W
|
|
Temperature Range
|
200° - 450°C (400° - 840°F)
|
|
Temperature Stability
|
±5°C (±9°F)
|
|
Temperature Accuracy
|
±15°C (±27°F)
|
|
Output Voltage
|
24V
|
|
Outer Dimensions
|
160(W) x 120(H) x 225(D) mm
6.3 (W) x 4.7 (H) x 8.9 (D) in.
|
|
Weight (w/o Cord)
|
3.4 kg (7.5 lbs.)
|
|
Vacuum Generator
|
Ejector Type
|
|
Vacuum Pressure (max.)
|
93 kPa (700 mm Hg) (28 in. Hg)
|
|
Suction Flow
|
20 liters/min.
|
|
Input Air Pressuer
(in use)
|
490 kPa (71 psi)
|
|
Air Consumption
|
46 liters/min.
|
|
Power Consumption
|
70W (24V)
|
|
Temperature Range
|
350° - 450°C (660° - 840°F)
|
|
Tip-to-Ground Resistance
|
< 2 ohms
|
|
Tip-to-Ground Potential
|
< 2 mV
|
|
Total Length (w/o cord)
|
180 mm (7.0 in.)
|
|
Weight (w/o cord)
|
65g (2.3 oz.)
|
|
Cord Length
|
1.2m (4 ft.)
|
FM-2027 Soldering Iron
(not included with FM205-01)
|
Power Consumption
|
70W (24V)
|
|
Temperature Range
|
200° - 450°C (400° - 840°F)
|
|
Tip-to-Ground Resistance
|
< 2 ohms
|
|
Tip-to-Ground Potential
|
< 2mV
|
|
Cord length
|
1.2m (4 ft.)
|
|
Total Length (w/o cord) with D24 tip
|
188 mm (7.4 in.)
|
|
Weight (w/o cord) with D24 tip
|
30g (1.07 oz.)
|
Contents
|
Part Number
|
Description
|
|
|
N/A
|
FM-205 Desoldering Station
|
|
|
FM2024-02
|
Desoldering handpiece
|
|
|
A1511
|
Filter pipe assembly
(10 pc pack)
|
1 pack only
|
|
B2972
|
Control card
|
|
|
B2419
|
Power cord
|
|
|
B3253
|
Connecting cable
|
|
|
FH200-05
|
Iron Holder, Sleep
|
with 599B
|
|
B2872
|
Handle
|
for gun configuration
|
|
B2873
|
Cleaning drill
|
for heating element
|
|
B2876
|
Nozzle remover
|
|
|
B2300
|
Heat resistant pad
|
|
|
A1514
|
Ceramic paper filter
(10 pc pack)
|
1 pack only
|
|
N/A
|
Instruction manual
|
|
|
