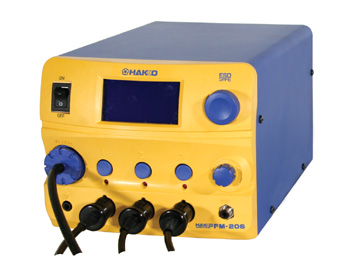

3-PORT REWORK STATION
The Hakko FM-206 3-Port Rework Station will power any Hakko FM Series handpiece, including FM-2027, FM-2030, FM-2032, FM-2022, FM2023, FM-2024, FM-2026 and FM-2029 thus offering the ability for you to tailor the station to fit your specific rework needs. The station's sleek, compact design minimizes loss of bench space and its powerful ports allow the use of the Hakko FM-2029 single hot air handpiece, and, or simultaneous use of the Hakko FM-2030 heavy duty soldering iron, making this the ultimate rework station..
• Graphic User Interface for easy setup and operation
• 3 simultaneous powered ports
• Self-contained pump for vacuum and air flow
• Digital airflow indicator
• Configurable display in °C or °F
• High performance hot air handpiece ramps up to max temp in < 20 secs
• Capable of hot air rework of 0201, 01005 and up to 10x10mm QFNs
• Meets or exceeds J-STD-001
• Manual or Automatic profile for hot air
• Auto shutoff with sleep function
• Passcode protected
• Security lock to protect against theft or unauthorized re-location
• Integrates with the Hakko FR-830, FR-870B and FR-872 Preheaters
• Low cost composite hot air nozzles
• Desoldering delay timer
• Optional footswitch for pump operation
• Option for external gas supply for hot air
• ESD safe by design
• NOTE: Tips and Nozzles are NOT included with station or any configuration
• Part Number (station ONLY): FM206-55
To Learn How To:
• change the channel preset labels
• change the parameter settings
• change the preset and working temperature
• set an auto hot air profile with the FM-2029 hot air pencil
• turn off the grip alarm (if not using all 3 handpiece ports)
Watch the How To videos in our Instructional Video Library
Learn How To integrate the Hakko FR-870 IR board preheater with the FM-206.
Watch the video below.
Link to YouTube
Hakko FM-206 Station Configurations
Standard Configurations (includes station FM206-55):
Part Number: FM206-DSS = Desolder, Solder, Solder
Part Number: FM206-DTS = Desolder, Tweezer, Solder
Part Number: FM206-STA = Solder, Tweezer, Air
Part Number: FM206-DSA = Desolder, Solder, Air
Handpieces:
Desolder = FM-2024 (desoldering tool)
Solder = FM-2027 (soldering iron)
Tweezer = FM-2022 Parallel Remover (hot tweezer)
Air = FM-2029 (hot air rework pencil)
Part Number | | SPECIFICATIONS FM-206 3-Port Station Only | Model Name | FM-206 | | Part Number | FM206-55 | | Input Voltage | 120V | | Power Consumption | 410W (max) | | Temperature Stability | ±5°C | | Temperature Range | subject to handpiece connected | | Air Flow Capacity | 6L/min. max (hot air) | | Vacuum Generator | Diaphragm pump system | | Vacuum Pressure (max) | 80kPa (600mmHg)
when desoldering in use | | Suction Flow | 14L/min
when desoldering in use | | Dimensions | 162(W) x 136(H) x 245(D)mm | | Weight | 6.2 kgs | | Safety Approval |  |
CONTENTS (FM-206 Station Only) | Part Number | Description | | FM206-55 | 3-Port Station | | B2756 | Tip Tray | | B2419 | Power cord | | | Instruction Manual |
HANDPIECES
FM-2027 Soldering Iron
| Model Name | FM-2027 | | Part Number | FM2027-06 | | Power Consumption | 70W | | Temperature Range | 200-450°C / 400-840°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Total Length (w/o cord) | 188mm (w/tip shape 2.4D) | | Weight (w/o cord) | 30g | | Cord | 1.2m |
FM-2022 Parallel Remover (Hot Tweezer)
| Model Name | FM-2022 | | Part Number | FM2022-02 | | Power Consumption | 140W / 24V | | Temperature Range | 200-400°C / 400-750°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Total Length (w/o cord, tip) | 110mm | | Weight (w/o cord, tip) | 53g | | Cord | 1.2m |
FM-2023 Mini Hot Tweezer
| Model Name | FM-2023 | | Part Number | FM2023-02 | | Power Consumption | 140W / 24V | | Temperature Range | 200-400°C / 400-750°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Standard Tip | Chip I | | Total Length (w/o cord, tip) | 75mm | | Weight (w/o cord, tip) | 32g | | Cord | 1.2m |
FM-2024 Desoldering Tool
| Model Name | FM-2024 | | Part Number | FM2024-02 | | Power Consumption | 70W / 24V | | Temperature Range | 350-450°C / 660-840°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Total Length (w/o cord) | 180mm (w/ ø1.0 nozzle) | | Weight (w/o cord) | 65g (w/ ø1.0 nozzle) | | Cord | 1.2m |
FM-2026 Nitrogen (N2) Soldering Iron
| Model Name | FM-2026 | | Part Number | FM2026-02 | | Power Consumption | 70W | | Temperature Range | 200-450°C / 400-840°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Total Length (w/o cord) | 205mm (w/tip shape 2.4D) | | Weight (w/o cord) | 45g | | Cord | 1.2m |
FM-2029 Single Hot Air
| Model Name | FM-2029 | | Part Number | FM2029-02 | | Power Consumption | 140W | | Temperature Range | 100-550°C / 200-1030°F | | Tip to Ground Resistance | <2 ohms | | Tip to Ground Potential | <2mV | | Total Length (w/o cord, nozzle) | 167mm | | Weight (w/o cord, nozzle) | 35g | | Cord | 1.2m |
Hakko FM-206 Configurations CONTENTS
FM206-DSS
Part Number | Item Part Number | Description | FM2024-42
Conversion Kit | | FM2024-02 | Desoldering Tool | | FH200-05 | Handpiece holder | | A1514 | Ceramic filter, 10 pk | | B3253 | Connecting cord to holder | | B2873 | Cleaning drill | | B2876 | Nozzle remover | | Instruction Manual | | (2) FM2027-06
Conversion Kits | (2) FM2027-06 | Soldering iron with green grip | | FH200-01 | Iron holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | |
|
|
|
FM206-DTS Part Number | Item Part Number | Description | FM2024-42
Conversion Kit | FM2024-02 | Desoldering Tool | | FH200-05 | Handpiece Holder | | A1514 | Ceramic filter, 10 pk | | B3253 | Connecting cord to holder | | B2873 | Cleaning drill | | B2876 | Nozzle remover | | Instruction Manual | | FM2022-05
Conversion Kit | FM2022-02 | Hot Tweezer handpiece | | FH200-03 | Handpiece holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | | Instruction Manual | | FM2027-06
Conversion Kit | FM2027-06 | Soldering Iron with green grip | | FH200-01 | Iron Holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | |
FM206-STA
Part Number | Item Part Number | Description | FM2027-06
Conversion Kit | FM2027-06 | Soldering iron with green grip | | FH200-01 | Iron holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | |
|
|
FM2022-05
Conversion Kit | FM2022-02 | Hot Tweezer handpiece | | FH200-03 | Handpiece holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | | Instruction Manual | | FM2029-01
Conversion Kit | FM2029-02 | Single hot air handpiece | | C1574 | Handpiece holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | | Instruction Manual | |
FM206-DSA Part Number | Item Part Number | Description | FM2024-42
Conversion Kit | FM2024-02 | Desoldering Tool | | FH200-05 | Handpiece holder | | A1514 | Ceramic filter, 10 pk | | B3253 | Connecting cord to holder | | B2873 | Cleaning drill | | B2876 | Nozzle remover | | Instruction Manual | | FM2027-06
Conversion Kit | FM2027-06 | Soldering Iron with green grip | | FH200-01 | Iron Holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | |
FM2029-01
Conversion Kit | FM2029-02 | Single Hot Air handpiece | | C1574 | Handpiece holder | | B3253 | Connecting cord to holder | | B2300 | Heat resistance pad | | Instruction Manual | |
|
|
