FT8002-CK
FT8002-CK CK,WIRE STRIPPER,w/C5012,FT-8002
In Stock: 0 ea
Add to order/quote

Currently 0 in stock.

FT8002-CK

FT-8002 Conversion Kit

The Hakko FT-8002 Thermal Wire Stripper Conversion Kit is the upgrade to the popular FT-800/801/*802. Some new features include a redesigned ergonomic FT-8002 hand piece and uses the more durable G2 Series blades.

*For the FT-802's handpiece (the FT-8004) to work with the FT8002-CK, the B5247 Receptacle must be attached.

The Hakko FT-8002 Thermal Wire Stripper Conversion Kit is designed to allow existing FT-800 users the ability to use the redesigned ergonomic FT-8002 Handpiece and the new, more durable G2 Series blades and offers the following features:

• Long, flexible cord for reach
• Redesigned ergonomic hand piece
• New wire stop with improved performance and durability
• New blades offer improved blade life
• Easy insertion and removal of blades
• New blade removal tool safely removes blades from hand piece
• Optional extension cord (B3659) allows a maximum reach of 2.5 m (that's 8.2 feet!)
• New holder design with safety protective cover
• FOD tray mitigates debris on the work bench
• Hand piece is compatible with older version G1 blades
• ESD Safe

NOTE: Blades are NOT included. Blades must be purchased separately.

IMPORTANT: Due to the difference in handpiece holders, the sleep and auto power off functions of the FT-800 may not be used with the FT-8002 Conversion Kit without electrical modification of the FT-800.


SPECIFICATIONS

• Hand Piece

Model
FT-8002
Part Number
FT8002-CK
Power Consumption
64W / 24VAC
Length (w/o cord, blade)
96 mm (3.8 in.)
Weight (w/o cord, blade)
48 g (0.11 lb.)
Reach
1.3 m (4.3 ft.)
Blades
G2 Series

• Wire Stripper Blade

Part NumberDescription
G2-1601Straight
G2-1602AWG 18-24
G2-1603AWG 26-33

For diagram of the blades, click on the Tips/Nozzles tab above.


NOTE:
Blades are NOT included with conversion kit. Blades must be purchased separately.

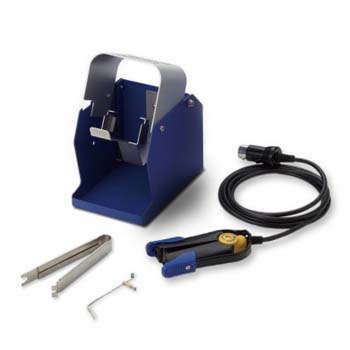

CONTENTS

Part Number
Part Name
FT8002-01
FT-8002 Handpiece
C1573
FT-8002 Handpiece Holder
B3644
FT-8002 Lead Adjuster
B3648
Blade Removal Tool
