FX780-01

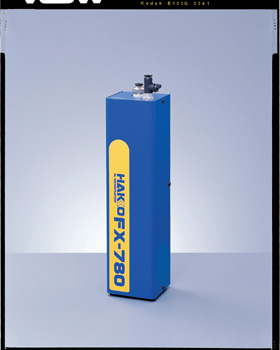

FX-780 Nitrogen Generator
Compact yet high performance, the Hakko FX-780 Nitrogen Generator creates nitrogen gas from filtered, dry compressed air, making this the ideal companion for your Hakko N2 Soldering System.
N2
SOLDERING SYSTEM
The Hakko N2 soldering system is the ideal
solution for all your
LEAD-FREE
hand-soldering applications. The bench-top FX-780 Nitrogen Generator creates
nitrogen gas from filtered, dry compressed air and the FX-791 Nitrogen
Controller and FM-2026 Soldering Iron delivers it efficiently and
uniformly to the soldering area.
NOTE: If you do NOT
have nitrogen availability at your work station, the compact FX-780 Generator is
the best bang for your buck.
Compact,
high-performance FX-780 Nitrogen Generator
• concentration of generated air = 99.9%
• concentration of generated N2 gas = 98%
• generator can be placed perpendicularly or horizontally
• Part Number: FX780-01 (sold separately, NOT
included with FM2026-KIT)
Nitrogen Generation
(l/min at 25°C/77°F)
Supplied
Air Pressure
(MPa) |
N2
Concentration
(%) |
99.9 |
99.5 |
99.0 |
98.0 |
97.0 |
96.0 |
95.0 |
90.0 |
| 0.3 |
Amount of
Generated N2 |
0.15 |
0.37 |
0.48 |
0.66 |
0.88 |
1.1 |
1.3 |
2.6 |
| 0.4 |
Amount of
Generated N2 |
0.24 |
0.57 |
0.77 |
1.1 |
1.4 |
1.7 |
2.0 |
4.4 |
| 0.5 |
Amount of
Generated N2 |
0.35 |
0.75 |
1.1 |
1.5 |
1.9 |
2.2 |
2.9 |
5.9 |
| 0.6 |
Amount of
Generated N2 |
0.48 |
0.97 |
1.3 |
1.8 |
2.4 |
3.1 |
3.5 |
7.5 |
| 0.7 |
Amount of
Generated N2 |
0.55 |
1.2 |
1.6 |
2.2 |
3.1 |
3.7 |
4.2 |
9.2 |
Call your local Hakko sales professional for a no
obligation demonstration today.
Note: The 6 mm hose (black tubing) from the nitrogen generator to the controller are not included because length requirements vary greatly from customer to customer. The 6 mm hose (black tubing) can be purchased at your local hardware store.
Part Number: FX780-01 Generator (see Specifications for details)
Part Number: FX791-01 Controller (see Specifications for details)
Part Number: FM2026-01 N2 Soldering Iron
(see Specs for details)
Part Number: FM2026-KIT
Note:
FM-2026-KIT includes FM2026-01 (iron)
and FX791-01 (Controller)
ONLY
| | SPECIFICATIONS
| Model Name | FX-780 | | Part Number | FX780-01 | | Air Supply Pressure | 44 - 102 psi (0.3 - 0.7 MPa) | | Concentration of Generated Air | 99.9 % (max) | | Generated N2 Gas Flow | 1.5 l/min
when 0.5 MPa of air supply pressure
is supplied at 25°C, the concentration of
generated N2 gas is 98% | | Outer Dimensions (w/o sockets and valve) | 2.9(W) x 11.1(H) x 2.8(L) in.
(73 x 282 x 71 mm) | Weight
(w/o rack) | 3.3 lb. (1.5 Kg) | | Contents | FX-780 (1 pc)
Rack and screws (1 set) |
|
|
