FX801-02
FX801-02 STATION, SDRG, 260W, UHD, ESD, w/o TIP, FX-801
In Stock: 0 ea
Add to order/quote

Currently 0 in stock.

FX801-02

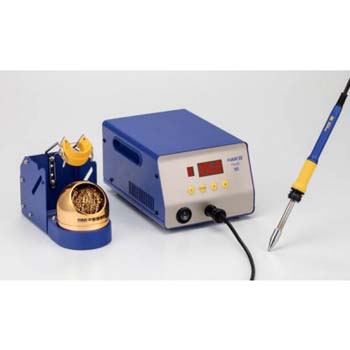

FX-801 Ultra Heavy Duty (UHD) Soldering Station

Hakko’s FX-801 is the ideal soldering station for extremely large mass components, such as high current inductor coils, heat sinks, large transformers, shields, and other difficult solder applications where there is a significant amount of thermal inertia that must be overcome, enabling you to solder some of the most challenging solder joints.

• Uses T33 and T33-SS Series Tips, which feature 260W composite ceramic heating elements

• Heating elements have a top controlled temperature of 940°F (500°C) and high mass shapes

• Up to 6 user programmable preset temperatures

• Process control lockout with password protection

• Lightweight (50g) heavy duty 300W soldering iron

• Sleep/Power-off function — station automatically enters sleep/power-off function when handpiece is placed in iron holder

• Large LED display

• Integrated handles on station make it easy to move or carry

• Low temperature alarm

• ESD Safe




FX-801 ULTRA HEAVY DUTY SOLDERING STATION

Model NameFX-801
Part NumberFX800-02
Voltage120VAC 50/60 Hz
Output Voltage29V
Power Consumption 300W
Temperature Range120°F - 940°F (50°C - 500°C)
Temperature Stability±9°F (±5°C)
Outer Dimensions5.7 x 4.2 x 8.3 in.
(145 x 107 x 211 mm)
Weight (w/o Cord)8.3 lb. (3.9 kg)
ESD SafeYes
Safety Approval

SOLDERING IRON - HANDPIECE
Model NumberFX-8002
Part NumberFX8002-81
Power Consumption260W (29V)
Tip-to-Ground Resistance< 2 ohms
Tip-to-Ground Potential< 2mV
HeaterComposite Ceramic Cartridge
Tips†T33 Series (not included)
Cord Length‡4 ft. (1.2 m)
Total Length (w/o cord)‡9.0 in. (288 mm)
Weight (w/o cord)0.11 lb. (50 g)
† Tips not included
‡ As measured with T33-BC4 tip installed

CONTENTS

Part Number Description
- -FX-801 UHD Soldering Station
FX8002-81FX-8002 Soldering Handpiece
FH200-83FH-200 Holder w/599B Tip Cleaner
B3253Sleep Connection Cable
B2300Heat Resistant Pad
B2419Power Cord
- -Instruction Manual
