K1 0 - 8.8 in.lb range, w/ external joint simulator In Stock: 0 ea
Add to order/quote
Currently 0 in stock.
K1

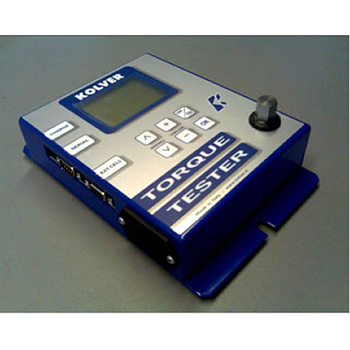

Torque Analyzer
The K series is a totally new class of torque analyzers. They feature a built-in transducer and also have the unique ability to connect to an external transducer. Using high performance circuitry, they collect, store and eventually download torque measurements for a complete analysis of the tool and/or the joint. Priced at a low cost, the tester has become very popular among those companies wishing to improve their product quality through the precise control of torque.
Features:
User friendly menu
Accuracy: +/- 0.5% of the indicated value +/-1 digit
Internal transducer for tests on a joint simulator (supplied with the unit)
Connection for external transducer (transducer not included)
500 Run down memory
Selection among Nm, Ncm, kg/cm, and in-lbs
RS232C output (cable not included)
Indication <=> of the preset values
Output signal at preset reached value
Clockwise and counter-clockwise measurement.
3 modes of operation: Peak +, Peak -, Track
Manual or automatic reset
9 V rechargeable battery provides 4 hours continuous operation - automatic switch-off to reduce battery consumption
125% transducer overload protection
Items that ship with this unit:
Plastic carrying case
One rechargeable battery
One joint simulator (semi-elastic)
Instruction manual and certificate of calibration.
NOTE: Additional joint simulators (rundown adapters) for hard joint or fully elastic joint available on request
