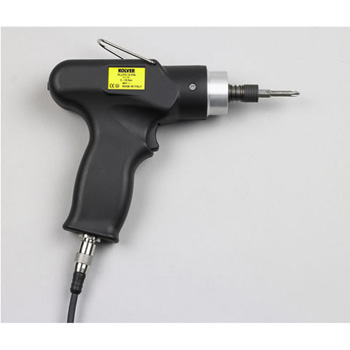

PLUTO10P-N

Torque Driver

Kolver has developed the PLUTO (PLUs TOrque) DC-controlled electric screwdrivers which are able to reach from 2.6 to 310 in-lbs of torque. The Pluto 10 series has a torque range of 18 to 88. See the rest of the Pluto product line for additional torque capability.

The PLUTO operates by setting a torque and RPM profile on a controller, validated back to a separate transducer or torque tester. As a result a controller is necessary for the tool to operate (purchased separately).

Unique features of this model:

• Pistol with cord from bottom
• ESD-Safe housing

The torque profile includes the following parameter steps (units available for single and multi-torque applications):

• slow start
• adjustable speed
• soft or hard joint option
• high speed rundown
• slow speed tightening to manage the moment of intertia
• automatic reverse at cycle end
• elapsed time auto-stop

IO included for torque reached signal and lever signal, remote start and reverse contacts

Items that ship with this unit:

• Screwdriver with ESD-safe body
• 8 ft controller connection cable
• Suspension bail

NOTES:

The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.
