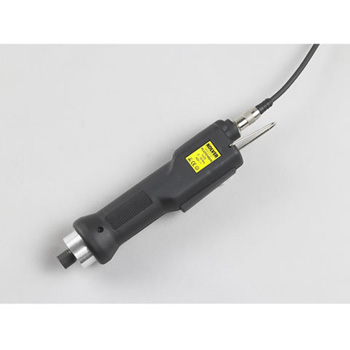

PLUTO15D-N
PLUTO15D-N Lever start, inline current controlled driver, 18.0 - 132.8 in.lb, 60-320 RPM
In Stock: 0 ea
Add to order/quote

Currently 0 in stock.

PLUTO15D-N



Torque Driver

Kolver has developed the PLUTO (PLUs TOrque) DC-controlled electric screwdrivers which are able to reach from 2.6 to 310 in-lbs of torque. The Pluto 15 series has a torque range of 18 to 132 in-lbs. See the rest of the Pluto product line for additional torque capability.

The PLUTO operates by setting a torque and RPM profile on a controller, validated back to a separate transducer or torque tester. As a result a controller is necessary for the tool to operate (purchased separately).

Unique features of this model:
  • In-line body style
  • ESD-Safe housing

The torque profile includes the following parameter steps (units available for single and multi-torque applications):

  • slow start
  • adjustable speed
  • soft or hard joint option
  • high speed rundown
  • slow speed tightening to manage the moment of intertia
  • automatic reverse at cycle end
  • elapsed time auto-stop

IO included for torque reached signal and lever signal, remote start and reverse contacts.

Items that ship with this unit:
  • Screwdriver with ESD-safe body
  • 8 ft controller connection cable
  • Suspension bail

NOTES:

The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.

Details & Specifications


Torque Range: 18 to 132 in-lbs
RPM Range: 320 rpm max
Screw Size: M5
Voltage: 40 VDC
Dimensions: 8.50
Weight: 1.3 lbs.
Start Option: Lever
Housing Option: In-Line
ESD: Safe
Time Control: Standard
RPM Control: Standard
Screw Counting: Optional
Profile Sequencing: Optional
Parameter Sets: Eight (8) Optional
