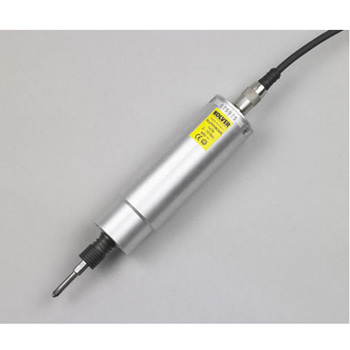

PLUTO20CA

Torque Driver

The Kolver CA Series incorporates the PLUTO (PLUs TOrque) DC-controlled electric screwdrivers design, supplied in a in-line aluminum housing with remote start for fixture mounting applications. The DC motor and solid state controls of the PLUTO are ideal for automated high volume/duty applications.

The PLUTO operates by setting a torque and RPM profile on a controller, validated back to a separate transducer or torque tester. As a result a controller is necessary for the tool to operate (purchased separately).

Unique features of this model:

• Aluminum in-line body style
• Remote start/stop/reverse
• 3/8" male square drive

The torque profile includes the following parameter steps (units available for single and multi-torque applications):

• slow start
• adjustable speed
• soft or hard joint option
• high speed rundown
• slow speed tightening to manage the moment of inertia
• automatic reverse at cycle end
• elapsed time auto-stop

IO included for torque reached signal and lever signal, remote start and reverse contacts

Items that ship with this unit:

• 8 ft controller connection cable

NOTES:

1. The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.
2. This tool has no start/stop controls on the tool, it requires signals from the controller to operate.
