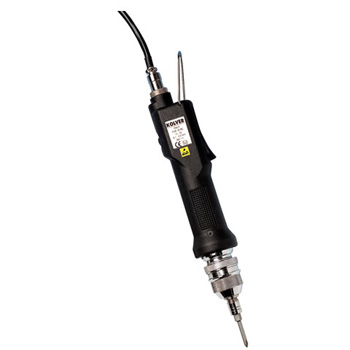

RAF38PS-FR

Torque Driver

Torque Range: 7.9 to 33.6 in-lbs

The RAF38PS/FR is the push-to-start version of the RAF38NS/FR. The tool has the same ergonomic ESD safe in-line body style, motor and clutch as the RAF38NS/FR.

RAF Series screwdrivers are designed to meet higher torque applications than the RAF12 family of tools. The advanced ergonomic body design reduces Carpal Tunnel Syndrome. They are lightweight, compact, powerful and come standard with ESD-safe housing certified to SP method 2472 (Ericsson approved). The RAF series wide torque range and tight torque accuracy combined with the adjustable RPMs and slow-start options, make it a versatile tool ideal for multiple applications.

The torque is set externally: an adjusting nut controls output torque by changing the clutch spring compression. A reference scale will indicate the torque setting. The low voltage 30 VDC rare earth motor combines high performance and long life. Replacing the carbon brushes once a year is all you need for maintenance. The motor works in combination with a control unit. The electronic control circuit cuts the power supply to the motor in response to the clutch action, as soon as the pre-set torque has been reached.

A Controller is required for this tool to operate (purchased separately). Choose a Controller from the list below. The EDU1FR is our most popular controller, because of the RMP control it provides. The EDU1FR/SG offers the same functionality with the addition of an input for remote start and outputs for lever start (motor on) and clutch fired (motor stop). The EDU1CL/FR is the same shape and size but offers no RPM control (this is our lowest cost model). The EDU1FR/PLC offers screw counting and has IO available to control secondary operations.

Items that ship with this unit:

• Screwdriver with ESD-safe body
• 8 ft controller connection cable
• Suspension bail

NOTES:

The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.

Comes With Free EDU1FR Controller

Details & Specifications
