FA430-16
FA430-16 SMOKE ABSORBER, w/o DUCT&HOOD, FA-430
In Stock: 1 ea
Add to order/quote

FA430-16

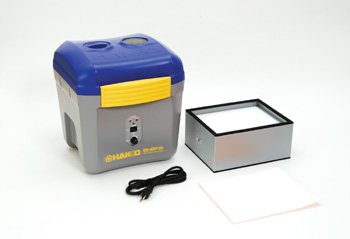

FA-430 Smoke and Fume Extraction System w/o Duct Kit

The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area.

FUME AND SMOKE EXTRACTION SYSTEM

The Hakko FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. (Shown above: Loc-Line duct with rectangular nozzle sold separately. See Accessories for details.)

Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

control panel

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.

The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.

The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

• Powerful suction

• Quiet operation

• 3-airflow adjustment modes: High, Medium, Low

• Free standing ducts

• To maintain optimum filtering efficiency, special filter replacement indicators on the front panel notify you when it is time to replace the filters.



Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.


SPECIFICATIONS

Part NumberFA430-16
Power Consumption120W / 120VAC
Motor TypeBrushless
Max. Airflow (w/ single duct)4.1 m3/min (145 cfm)
Max. Airflow (w/ two ducts)4.7 m3/min (167 cfm)
Vacuum Pressure1500 Pa (0.44 in. Hg)
Filtering Efficiency>98% 0.3µm
(capable of 99.97% @ 0.3µm)
Noise Level44 - 53 dB @ 1m
Dimensions
330 (W) x 366 (H) x 343 (D) mm
(13.0 x 14.4 x 13.5 in.)
Weight7.5 kgs (16.5 lb.)
ESD SafeYes



CONTENTS

Part NumberDescription
FA430-16Fume Extraction Unit
A1585Pre-filter
A1586Main Filter
B3619Port Cap
 Instruction Manual



Safety Approval
